TC-MO-HP1-ON-SB

Name: TC-MO-HP1-ON-SB
SKU: TC-1887
Price: 32670 JPY
Availability: OutOfStock

特徴

◎油穴なしタップでもアダプタスルーで刃先に給油(～5MPa)
◎タッパー本体との脱着がクイックチェンジ
◎タップ交換もクイックチェンジ
◎2種類の長さのアダプタがあり高価なロングタップが不必要
◎狭い空間や段際干渉がある場合に最適
◎ISO・DIN規格のタップにも対応
●超硬タップは把持力が低下し、抜けやすくなります。
◎安全装置（トルクリミッタ）がなく浅ネジの心配なし

おすすめポイント

油穴が無いタップでもクーラントを供給！
高圧クーラントスルー対応(～5MPa)
タップ四角部でトルクを伝えるのでタップがすべらない！
タップ、タップアダプタ交換がワンタッチ！
安全装置が付いてないので被削材を選ばない！
ロングタップ不要！

対応機構

クーラント安全装置ロング

組み合わせ表

製品名	ホルダ本体
TC-MO-HP1-ON-SB型	HA-M-OHC型,SA-Ⅲ-OHC型

主な仕様

製品名	機能
TC-MO-HP1-ON-SB	アダプタスルー(～5MPa)

※油穴無しタップでクーラントスルーが使用可能。
※ OSGエンドミルシャンク用も別途製作可能。

カスタマーレビュー

タップサイズ交換が早くて効率的です。
タップを交換しても突出し量が変わらないので便利です。
標準タップを使っても刃先にクーラントを出せるので便利です。

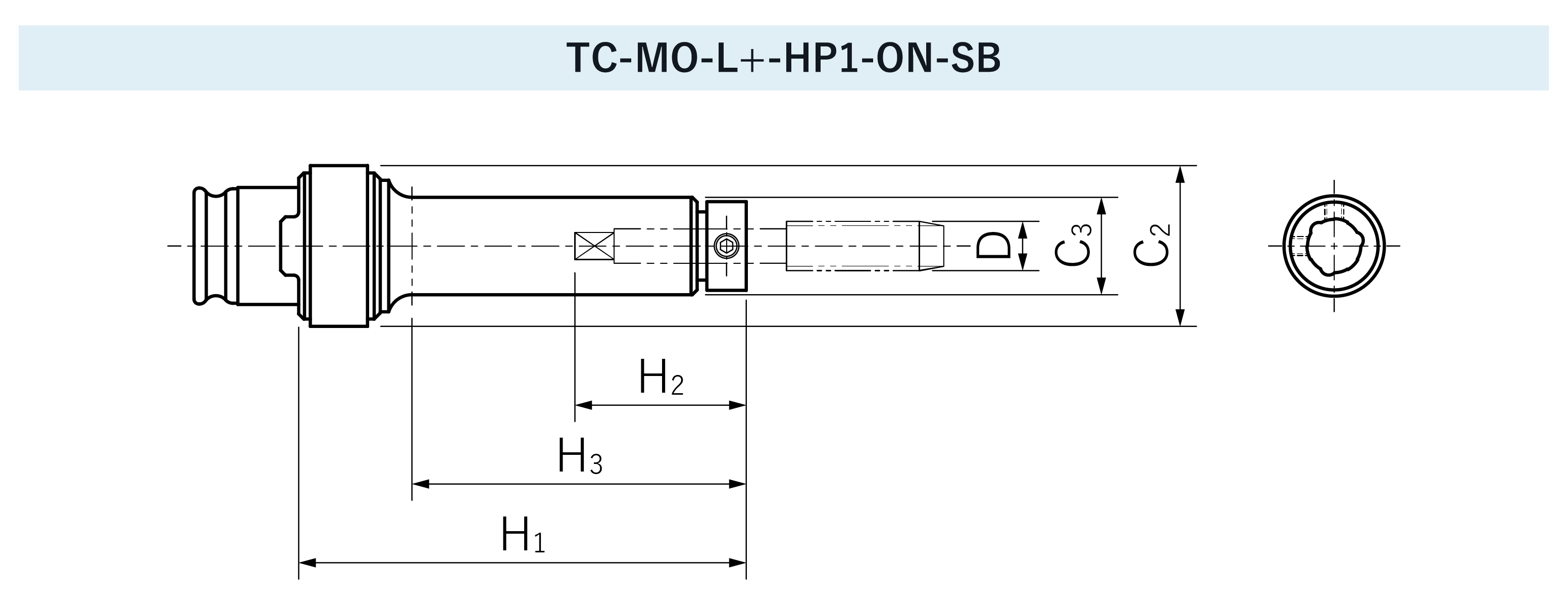

図面

スペック

注文code	製品名	ネジ規格	対応サイズ	H₁	H₂	H₃	C₂	C₃	アダプタ/コレット形式	タップ軸径d₁	角部幅K	重量 [kg]	参考価格 (税別)	在庫状況
TC-1888	TC412-MO-L+60-HP1-M8(7)-ON-SB	1	M7	108.5	28	80	33	16	TC-MO-HP-ON-SB	6.2	5.0	0.24	￥29,700	要問合せ
TC-1888	TC412-MO-L+60-HP1-M8(7)-ON-SB	1	M8	108.5	28	80	33	16	TC-MO-HP-ON-SB	6.2	5.0	0.24	￥29,700	要問合せ
TC-1889	TC412-MO-L+60-HP1-M10(9),U3/8-ON-SB	1	M9	109.5	33	86	33	20	TC-MO-HP-ON-SB	7.0	5.5	0.26	￥29,700	要問合せ
TC-1889	TC412-MO-L+60-HP1-M10(9),U3/8-ON-SB	1	M10	109.5	33	86	33	20	TC-MO-HP-ON-SB	7.0	5.5	0.26	￥29,700	要問合せ
TC-1889	TC412-MO-L+60-HP1-M10(9),U3/8-ON-SB	2	U 3/8	109.5	33	86	33	20	TC-MO-HP-ON-SB	7.0	5.5	0.26	￥29,700	要問合せ
TC-1891	TC412-MO-L+60-HP1-M12-ON-SB	1	M12	109.5	34	86	33	20	TC-MO-HP-ON-SB	8.5	6.5	0.26	￥29,700	要問合せ
TC-1893	TC412-MO-L+60-HP1-M14,U9/16-ON-SB	1	M14	115.5	37	99	33	27	TC-MO-HP-ON-SB	10.5	8.0	0.4	￥29,700	要問合せ
TC-1893	TC412-MO-L+60-HP1-M14,U9/16-ON-SB	1	M15	115.5	37	99	33	27	TC-MO-HP-ON-SB	10.5	8.0	0.4	￥29,700	要問合せ
TC-1893	TC412-MO-L+60-HP1-M14,U9/16-ON-SB	2	U 9/16	115.5	37	99	33	27	TC-MO-HP-ON-SB	10.5	8.0	0.4	￥29,700	要問合せ
TC-1895	TC412-MO-L+60-HP1-M16-ON-SB	1	M16	115.5	39	99	33	27	TC-MO-HP-ON-SB	12.5	10.0	0.4	￥29,700	要問合せ
TC-1890	TC412-MO-L+60-HP1-P1/8,U7/16(M11)-ON-SB	1	M11	109.5	34	86	33	20	TC-MO-HP-ON-SB	8.0	6.0	0.26	￥29,700	要問合せ
TC-1890	TC412-MO-L+60-HP1-P1/8,U7/16(M11)-ON-SB	3	P 1/16	109.5	34	86	33	20	TC-MO-HP-ON-SB	8.0	6.0	0.26	￥29,700	要問合せ
TC-1890	TC412-MO-L+60-HP1-P1/8,U7/16(M11)-ON-SB	3	P 1/8	109.5	34	86	33	20	TC-MO-HP-ON-SB	8.0	6.0	0.26	￥29,700	要問合せ
TC-1890	TC412-MO-L+60-HP1-P1/8,U7/16(M11)-ON-SB	2	U 7/16	109.5	34	86	33	20	TC-MO-HP-ON-SB	8.0	6.0	0.26	￥29,700	要問合せ
TC-1896	TC412-MO-L+60-HP1-P1/4-ON-SB	3	P 1/4	115.5	38	99	33	27	TC-MO-HP-ON-SB	11.0	9.0	0.4	￥29,700	要問合せ
TC-1887	TC412-MO-L+60-HP1-U5/16-ON-SB	2	U 5/16	108.5	28	80	33	16	TC-MO-HP-ON-SB	6.1	5.0	0.24	￥29,700	要問合せ
TC-1892	TC412-MO-L+60-HP1-U1/2-ON-SB	2	U 1/2	109.5	35	86	33	20	TC-MO-HP-ON-SB	9.0	7.0	0.26	￥29,700	要問合せ
TC-1894	TC412-MO-L+60-HP1-U5/8-ON-SB	2	U 5/8	115.5	38	99	33	27	TC-MO-HP-ON-SB	12.0	9.0	0.4	￥29,700	要問合せ
TC-1950	TC412-MO-L+100-HP1-M8(7)-ON-SB	1	M7	148.5	28	120	33	16	TC-MO-HP-ON-SB	6.2	5.0	0.26	￥29,700	要問合せ
TC-1950	TC412-MO-L+100-HP1-M8(7)-ON-SB	1	M8	148.5	28	120	33	16	TC-MO-HP-ON-SB	6.2	5.0	0.26	￥29,700	要問合せ
TC-1951	TC412-MO-L+100-HP1-M10(9),U3/8-ON-SB	1	M9	149.5	33	126	33	20	TC-MO-HP-ON-SB	7.0	5.5	0.31	￥29,700	要問合せ
TC-1951	TC412-MO-L+100-HP1-M10(9),U3/8-ON-SB	1	M10	149.5	33	126	33	20	TC-MO-HP-ON-SB	7.0	5.5	0.31	￥29,700	要問合せ
TC-1951	TC412-MO-L+100-HP1-M10(9),U3/8-ON-SB	2	U 3/8	149.5	33	126	33	20	TC-MO-HP-ON-SB	7.0	5.5	0.31	￥29,700	要問合せ
TC-1953	TC412-MO-L+100-HP1-M12-ON-SB	1	M12	149.5	34	126	33	20	TC-MO-HP-ON-SB	8.5	6.5	0.31	￥29,700	要問合せ
TC-1955	TC412-MO-L+100-HP1-M14,U9/16-ON-SB	1	M14	155.5	37	139	33	27	TC-MO-HP-ON-SB	10.5	8.0	0.53	￥29,700	要問合せ
TC-1955	TC412-MO-L+100-HP1-M14,U9/16-ON-SB	1	M15	155.5	37	139	33	27	TC-MO-HP-ON-SB	10.5	8.0	0.53	￥29,700	要問合せ
TC-1955	TC412-MO-L+100-HP1-M14,U9/16-ON-SB	2	U 9/16	155.5	37	139	33	27	TC-MO-HP-ON-SB	10.5	8.0	0.53	￥29,700	要問合せ
TC-1957	TC412-MO-L+100-HP1-M16-ON-SB	1	M16	155.5	39	139	33	27	TC-MO-HP-ON-SB	12.5	10.0	0.53	￥29,700	要問合せ
TC-1952	TC412-MO-L+100-HP1-P1/8,U7/16(M11)-ON-SB	1	M11	149.5	34	126	33	20	TC-MO-HP-ON-SB	8.0	6.0	0.31	￥29,700	要問合せ
TC-1952	TC412-MO-L+100-HP1-P1/8,U7/16(M11)-ON-SB	3	P 1/16	149.5	34	126	33	20	TC-MO-HP-ON-SB	8.0	6.0	0.31	￥29,700	要問合せ
TC-1952	TC412-MO-L+100-HP1-P1/8,U7/16(M11)-ON-SB	3	P 1/8	149.5	34	126	33	20	TC-MO-HP-ON-SB	8.0	6.0	0.31	￥29,700	要問合せ
TC-1952	TC412-MO-L+100-HP1-P1/8,U7/16(M11)-ON-SB	2	U 7/16	149.5	34	126	33	20	TC-MO-HP-ON-SB	8.0	6.0	0.31	￥29,700	要問合せ
TC-1958	TC412-MO-L+100-HP1-P1/4-ON-SB	3	P 1/4	155.5	38	139	33	27	TC-MO-HP-ON-SB	11.0	9.0	0.53	￥29,700	要問合せ
TC-1949	TC412-MO-L+100-HP1-U5/16-ON-SB	2	U 5/16	148.5	28	120	33	16	TC-MO-HP-ON-SB	6.1	5.0	0.26	￥29,700	要問合せ
TC-1954	TC412-MO-L+100-HP1-U1/2-ON-SB	2	U 1/2	149.5	35	126	33	20	TC-MO-HP-ON-SB	9.0	7.0	0.31	￥29,700	要問合せ
TC-1956	TC412-MO-L+100-HP1-U5/8-ON-SB	2	U 5/8	155.5	38	139	33	27	TC-MO-HP-ON-SB	12.0	9.0	0.53	￥29,700	要問合せ
TC-1916	TC1022-MO-L+60-HP1-M8(7)-ON-SB	1	M7	131	33	92.5	50	20	TC-MO-HP-ON-SB	6.2	5.0	0.7	￥33,000	要問合せ
TC-1916	TC1022-MO-L+60-HP1-M8(7)-ON-SB	1	M8	131	33	92.5	50	20	TC-MO-HP-ON-SB	6.2	5.0	0.7	￥33,000	要問合せ
TC-1917	TC1022-MO-L+60-HP1-M10(9),U3/8-ON-SB	1	M9	131	33	92.5	50	20	TC-MO-HP-ON-SB	7.0	5.5	0.7	￥33,000	要問合せ
TC-1917	TC1022-MO-L+60-HP1-M10(9),U3/8-ON-SB	1	M10	131	33	92.5	50	20	TC-MO-HP-ON-SB	7.0	5.5	0.7	￥33,000	要問合せ
TC-1917	TC1022-MO-L+60-HP1-M10(9),U3/8-ON-SB	2	U 3/8	131	33	92.5	50	20	TC-MO-HP-ON-SB	7.0	5.5	0.7	￥33,000	要問合せ
TC-1918	TC1022-MO-L+60-HP1-M12-ON-SB	1	M12	131	34	92.5	50	20	TC-MO-HP-ON-SB	8.5	6.5	0.7	￥33,000	要問合せ
TC-1920	TC1022-MO-L+60-HP1-M14,U9/16-ON-SB	1	M14	131	37	97.5	50	27	TC-MO-HP-ON-SB	10.5	8.0	0.8	￥33,000	要問合せ
TC-1920	TC1022-MO-L+60-HP1-M14,U9/16-ON-SB	1	M15	131	37	97.5	50	27	TC-MO-HP-ON-SB	10.5	8.0	0.8	￥33,000	要問合せ
TC-1920	TC1022-MO-L+60-HP1-M14,U9/16-ON-SB	2	U 9/16	131	37	97.5	50	27	TC-MO-HP-ON-SB	10.5	8.0	0.8	￥33,000	要問合せ
TC-1922	TC1022-MO-L+60-HP1-M16-ON-SB	1	M16	131	39	97.5	50	27	TC-MO-HP-ON-SB	12.5	10.0	0.8	￥33,000	要問合せ
TC-1923	TC1022-MO-L+60-HP1-M18,U3/4-ON-SB	1	M18	130	49	103	50	32	TC-MO-HP-ON-SB	14.0	11.0	0.85	￥33,000	要問合せ
TC-1923	TC1022-MO-L+60-HP1-M18,U3/4-ON-SB	2	U 3/4	130	49	103	50	32	TC-MO-HP-ON-SB	14.0	11.0	0.85	￥33,000	要問合せ
TC-1924	TC1022-MO-L+60-HP1-M20-ON-SB	1	M20	130	50	103	50	32	TC-MO-HP-ON-SB	15.0	12.0	0.85	￥33,000	要問合せ
TC-1925	TC1022-MO-L+60-HP1-M22,U7/8-ON-SB	1	M22	130	51	103	50	32	TC-MO-HP-ON-SB	17.0	13.0	0.85	￥33,000	要問合せ
TC-1925	TC1022-MO-L+60-HP1-M22,U7/8-ON-SB	2	U 7/8	130	51	103	50	32	TC-MO-HP-ON-SB	17.0	13.0	0.85	￥33,000	要問合せ
TC-1926	TC1022-MO-L+60-HP1-M24(25)-ON-SB	1	M24	133	53	109.5	50	36	TC-MO-HP-ON-SB	19.0	15.0	0.9	￥33,000	要問合せ
TC-1926	TC1022-MO-L+60-HP1-M24(25)-ON-SB	1	M25	133	53	109.5	50	36	TC-MO-HP-ON-SB	19.0	15.0	0.9	￥33,000	要問合せ
TC-1927	TC1022-MO-L+60-HP1-M27(26),U1-ON-SB	1	M26	133	53	109.5	50	36	TC-MO-HP-ON-SB	20.0	15.0	0.9	￥33,000	要問合せ
TC-1927	TC1022-MO-L+60-HP1-M27(26),U1-ON-SB	1	M27	133	53	109.5	50	36	TC-MO-HP-ON-SB	20.0	15.0	0.9	￥33,000	要問合せ
TC-1927	TC1022-MO-L+60-HP1-M27(26),U1-ON-SB	2	U1	133	53	109.5	50	36	TC-MO-HP-ON-SB	20.0	15.0	0.9	￥33,000	要問合せ
TC-1928	TC1022-MO-L+60-HP1-P1/8-ON-SB	3	P 1/16	125	35	86.5	50	20	TC-MO-HP-ON-SB	8.0	6.0	0.62	￥33,000	要問合せ
TC-1928	TC1022-MO-L+60-HP1-P1/8-ON-SB	3	P 1/8	125	35	86.5	50	20	TC-MO-HP-ON-SB	8.0	6.0	0.62	￥33,000	要問合せ
TC-1929	TC1022-MO-L+60-HP1-P1/4-ON-SB	3	P 1/4	125	38	91.5	50	27	TC-MO-HP-ON-SB	11.0	9.0	0.76	￥33,000	要問合せ
TC-1930	TC1022-MO-L+60-HP1-P3/8-ON-SB	3	P 3/8	125	40	91.5	50	27	TC-MO-HP-ON-SB	14.0	11.0	0.76	￥33,000	要問合せ
TC-1931	TC1022-MO-L+60-HP1-P1/2-ON-SB	3	P 1/2	127	47	103.5	50	36	TC-MO-HP-ON-SB	18.0	14.0	0.86	￥33,000	要問合せ
TC-1932	TC1022-MO-L+60-HP1-P5/8-ON-SB	3	P 5/8	127	48	103.5	50	36	TC-MO-HP-ON-SB	19.0	15.0	0.86	￥33,000	要問合せ
TC-3480	TC1022-MO-L+60-HP1-P3/4-ON-SB	3	P 3/4	130	50	107	50	40	TC-MO-HP-ON-SB	23.0	17.0	1.06	￥33,000	要問合せ
TC-3492	TC1022-MO-L+60-HP1-U7/16(M11)-ON-SB	1	M11	131	34	92.5	50	20	TC-MO-HP-ON-SB	8.0	6.0	0.7	￥33,000	要問合せ
TC-3492	TC1022-MO-L+60-HP1-U7/16(M11)-ON-SB	2	U 7/16	131	34	92.5	50	20	TC-MO-HP-ON-SB	8.0	6.0	0.7	￥33,000	要問合せ
TC-1919	TC1022-MO-L+60-HP1-U1/2-ON-SB	2	U 1/2	131	35	92.5	50	20	TC-MO-HP-ON-SB	9.0	7.0	0.7	￥33,000	要問合せ
TC-1921	TC1022-MO-L+60-HP1-U5/8-ON-SB	2	U 5/8	131	38	97.5	50	27	TC-MO-HP-ON-SB	12.0	9.0	0.8	￥33,000	要問合せ
TC-1978	TC1022-MO-L+100-HP1-M8(7)-ON-SB	1	M7	171	33	132.5	50	20	TC-MO-HP-ON-SB	6.2	5.0	0.85	￥33,000	要問合せ
TC-1978	TC1022-MO-L+100-HP1-M8(7)-ON-SB	1	M8	171	33	132.5	50	20	TC-MO-HP-ON-SB	6.2	5.0	0.85	￥33,000	要問合せ
TC-1979	TC1022-MO-L+100-HP1-M10(9),U3/8-ON-SB	1	M9	171	33	132.5	50	20	TC-MO-HP-ON-SB	7.0	5.5	0.85	￥33,000	要問合せ
TC-1979	TC1022-MO-L+100-HP1-M10(9),U3/8-ON-SB	1	M10	171	33	132.5	50	20	TC-MO-HP-ON-SB	7.0	5.5	0.85	￥33,000	要問合せ
TC-1979	TC1022-MO-L+100-HP1-M10(9),U3/8-ON-SB	2	U 3/8	171	33	132.5	50	20	TC-MO-HP-ON-SB	7.0	5.5	0.85	￥33,000	要問合せ
TC-1980	TC1022-MO-L+100-HP1-M12-ON-SB	1	M12	171	34	132.5	50	20	TC-MO-HP-ON-SB	8.5	6.5	0.85	￥33,000	要問合せ
TC-1982	TC1022-MO-L+100-HP1-M14,U9/16-ON-SB	1	M14	171	37	137.5	50	27	TC-MO-HP-ON-SB	10.5	8.0	0.9	￥33,000	要問合せ
TC-1982	TC1022-MO-L+100-HP1-M14,U9/16-ON-SB	1	M15	171	37	137.5	50	27	TC-MO-HP-ON-SB	10.5	8.0	0.9	￥33,000	要問合せ
TC-1982	TC1022-MO-L+100-HP1-M14,U9/16-ON-SB	2	U 9/16	171	37	137.5	50	27	TC-MO-HP-ON-SB	10.5	8.0	0.9	￥33,000	要問合せ
TC-1984	TC1022-MO-L+100-HP1-M16-ON-SB	1	M16	171	39	137.5	50	27	TC-MO-HP-ON-SB	12.5	10.0	0.9	￥33,000	要問合せ
TC-1985	TC1022-MO-L+100-HP1-M18,U3/4-ON-SB	1	M18	170	49	143.5	50	32	TC-MO-HP-ON-SB	14.0	11.0	1	￥33,000	要問合せ
TC-1985	TC1022-MO-L+100-HP1-M18,U3/4-ON-SB	2	U 3/4	170	49	143.5	50	32	TC-MO-HP-ON-SB	14.0	11.0	1	￥33,000	要問合せ
TC-1986	TC1022-MO-L+100-HP1-M20-ON-SB	1	M20	170	50	143.5	50	32	TC-MO-HP-ON-SB	15.0	12.0	1	￥33,000	要問合せ
TC-1987	TC1022-MO-L+100-HP1-M22,U7/8-ON-SB	1	M22	170	51	143.5	50	32	TC-MO-HP-ON-SB	17.0	13.0	1	￥33,000	要問合せ
TC-1987	TC1022-MO-L+100-HP1-M22,U7/8-ON-SB	2	U 7/8	170	51	143.5	50	32	TC-MO-HP-ON-SB	17.0	13.0	1	￥33,000	要問合せ
TC-1988	TC1022-MO-L+100-HP1-M24(25)-ON-SB	1	M24	173	53	149.5	50	36	TC-MO-HP-ON-SB	19.0	15.0	1.05	￥33,000	要問合せ
TC-1988	TC1022-MO-L+100-HP1-M24(25)-ON-SB	1	M25	173	53	149.5	50	36	TC-MO-HP-ON-SB	19.0	15.0	1.05	￥33,000	要問合せ
TC-1989	TC1022-MO-L+100-HP1-M27(26),U1-ON-SB	1	M26	173	53	149.5	50	36	TC-MO-HP-ON-SB	20.0	15.0	1.05	￥33,000	要問合せ
TC-1989	TC1022-MO-L+100-HP1-M27(26),U1-ON-SB	1	M27	173	53	149.5	50	36	TC-MO-HP-ON-SB	20.0	15.0	1.05	￥33,000	要問合せ
TC-1989	TC1022-MO-L+100-HP1-M27(26),U1-ON-SB	2	U1	173	53	149.5	50	36	TC-MO-HP-ON-SB	20.0	15.0	1.05	￥33,000	要問合せ
TC-1990	TC1022-MO-L+100-HP1-P1/8-ON-SB	3	P 1/16	165	35	126.5	50	20	TC-MO-HP-ON-SB	8.0	6.0	0.66	￥33,000	要問合せ
TC-1990	TC1022-MO-L+100-HP1-P1/8-ON-SB	3	P 1/8	165	35	126.5	50	20	TC-MO-HP-ON-SB	8.0	6.0	0.66	￥33,000	要問合せ
TC-1991	TC1022-MO-L+100-HP1-P1/4-ON-SB	3	P 1/4	165	38	131.5	50	27	TC-MO-HP-ON-SB	11.0	9.0	0.86	￥33,000	要問合せ
TC-1992	TC1022-MO-L+100-HP1-P3/8-ON-SB	3	P 3/8	165	40	131.5	50	27	TC-MO-HP-ON-SB	14.0	11.0	0.86	￥33,000	要問合せ
TC-1993	TC1022-MO-L+100-HP1-P1/2-ON-SB	3	P 1/2	167	47	143.5	50	36	TC-MO-HP-ON-SB	18.0	14.0	1.03	￥33,000	要問合せ
TC-1994	TC1022-MO-L+100-HP1-P5/8-ON-SB	3	P 5/8	167	48	143.5	50	36	TC-MO-HP-ON-SB	19.0	15.0	1.03	￥33,000	要問合せ
TC-1995	TC1022-MO-L+100-HP1-P3/4-ON-SB	3	P 3/4	170	50	147	50	40	TC-MO-HP-ON-SB	23.0	17.0	1.28	￥33,000	要問合せ
TC-3493	TC1022-MO-L+100-HP1-U7/16(M11)-ON-SB	1	M11	171	34	132.5	50	20	TC-MO-HP-ON-SB	8.0	6.0	0.85	￥33,000	要問合せ
TC-3493	TC1022-MO-L+100-HP1-U7/16(M11)-ON-SB	2	U 7/16	171	34	132.5	50	20	TC-MO-HP-ON-SB	8.0	6.0	0.85	￥33,000	要問合せ
TC-1981	TC1022-MO-L+100-HP1-U1/2-ON-SB	2	U 1/2	171	35	132.5	50	20	TC-MO-HP-ON-SB	9.0	7.0	0.85	￥33,000	要問合せ
TC-1983	TC1022-MO-L+100-HP1-U5/8-ON-SB	2	U 5/8	171	38	137.5	50	27	TC-MO-HP-ON-SB	12.0	9.0	0.9	￥33,000	要問合せ

※ℓ₁欄に※印がある場合、JIS規格のタップは取り付きません。ロングシャンクタップをご使用ください
